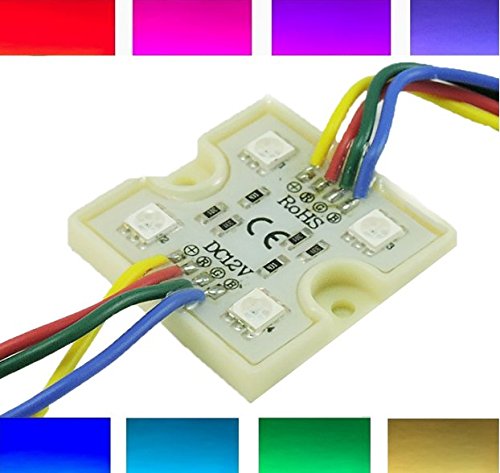

20pcs. Square RGB SMD 5050 LED Light Plastic MODULE – 4 Chips – Waterproof IP67 – Self Adhesive Tape – DC12V 120mA each – Changing Color – Decorative , Lighting Construccion , Back Pannel , Sign Cabinet , Channel Letter , Singboard , Advertising , Lighting Box , Cove Edge-lit , Window Shop , Car , Motorcycle , Boat , Yacht , Cruise Ship

RGB Function: You must have a RGB Controller to create multicolor lighting effects.
MORE TECHNICAL DATA
Working Voltage: DC12V
Working Current: 120mA
Power Consumption: 1.44W each module
LEDs per module: 4 LEDs
LED Type: SMD 5050
Beam Pattern: 140º
Size Module: L1.41″ x W 1.41″ x H 0.23″
Protection: IP67 – For outdoor use (Epoxy-encased package)
Adhesive backing: Yes
Expected Lifespan: 50,000 hrs.
Ultra-Violet emissions: No (So it won’t harm your art or documents).
Wavelength: Red: 619-635nm; Green: 512-528nm; Blue: 463-475nm
Package Include:20pcs. LED Modules
NOTES:
1) For optimum performance, do not exceed maximum load;
2) Please confirm color, voltage, before ordering!!;
3) When you wire your modules, we recommend you connect power to both ends to reduce any voltage drop problems over the line that would lead to reduced flux far from the driver;
4) Paste the LED Module with the adhesive backing and for permanent placing use a glue of your preference.
5) This product operates on low-voltage DC12V power. Each Module require 120mA/1.44W.
To use it, Don’t forget to buy the following:
1) DC12V Power Supply: it depends on the quantity of LED Modules you will setup. For best use, it should be 20% (approx.) stronger (Amps) than the total required to run your system. For 20pcs. Modules we recommend our “36W DC 12V 3A Output Switching Power Supply – UL LISTED” (see our storefront);
2) RGB Power Cable
3) RGB LED Controller

FREE TECH SUPPORT: JUST CALL US: (786) 520-3320. All trademark and copyright laws apply.

• With this product, you will have a lot of collors in one Module with the RGB function (RGB Controller and Power Supply are not included)
• Working Voltage: DC12V / Working Current: 120mA / 1.44W each Module
• Epoxy-encased package: IP67 – Waterproof (but not submersible); Size: L1.41
• Easy to install: Double-sided 3M foam tape on the back: Just peel and stick + 2 screw holes for more security (power supply not included)
• FREE TECH SUPPORT: just call us: (786) 520-3320. DEMASLED
